Topping DX5II Fully Balanced DAC Headphone Amp Combo - Dual ES9039Q2M 10 Band PEQ DSD512 Native PCM768kHz 6.35mm SE 4.4mm Balanced 4pin XLR Balanced Output (Black)
Product details
| Management number | 209161621 | Release Date | 2026/03/29 | List Price | $119.60 | Model Number | 209161621 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 👍 A big upgrade for a proven performer ▶️ The DX5 II is TOPPING’s new fully balanced DAC and headphone amp combo. Each channel (left and right) utilizes an independent ESS new DAC chip — ES9039Q2M. That means lower crosstalk, better imaging, and an improvement in specs: 133dB SNR, 133dB dynamic range, and distortion as low as 0.00006%.
- 👍 X-Hybrid Headphone Amplifier Circuit ▶️ The DX5 II replaces the NFCA module with an original triple-stage hybrid amp circuit. It uses a discrete input stage, op-amp gain stage, and discrete output stage. The result is high efficiency, improved thermals, and precise delivery at every volume. Power output peaks at 7600mW x2 into 16Ω—more than enough for basically any headphone.

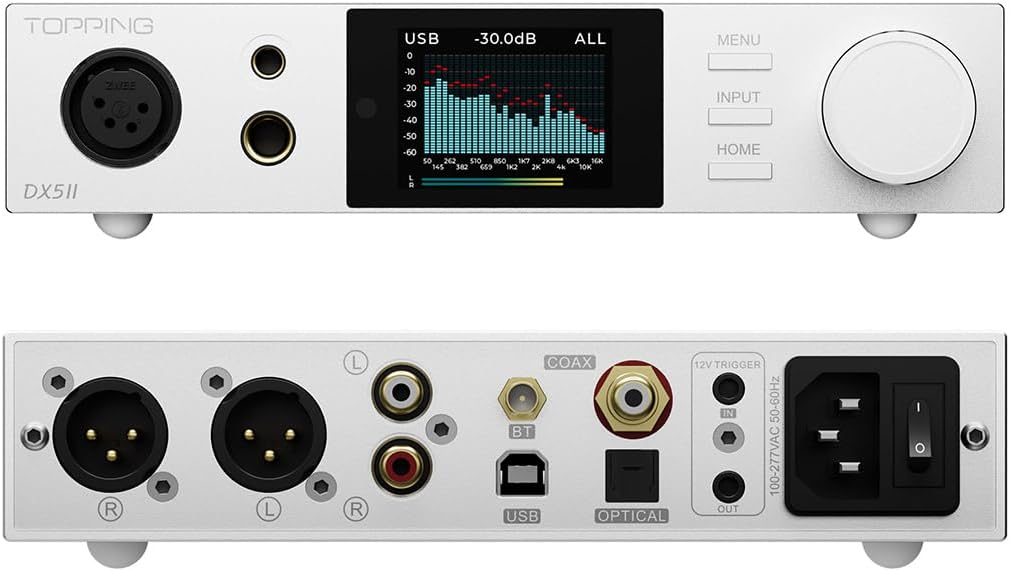

- 👍 Wide range of adaptation to headphones ▶️ DX5 II is equipped with 6.35mm single-ended, 4.4mm balanced, and 4-pin XLR headphone jack,meeting the needs from low-sensitivity headphones to high-sensitive IEMs. With a low noise floor of just 1.8uVrms, even the most sensitive IEMs remain free from any audible background hiss.
- 👍 10-band high-precision PEQ ▶️ The desktop software lets you tweak 10 independent frequency bands—adjusting frequency, gain, and Q-factor. Save multiple profiles, apply different EQ to your speakers and headphones, and import and export curves.
- 👍 LDAC wireless available ▶️ Equipped with QCC5125 chip, DX5 II supports Bluetooth 5.1 and can support up to 96kHz/24bit. Also it fully supports LDAC/aptX-Adaptive/aptX HD/AAC/SBC and other audio encodings, allowing high-quality audio to be transmitted wirelessly to provide a music experience beyond CD level.
| Brand | KGUSS |
|---|---|
| Color | Black |
| Manufacturer | TOPPING |
| Model Number | TOPPING DX5 II |
| Output Power | 7.6 Watts |

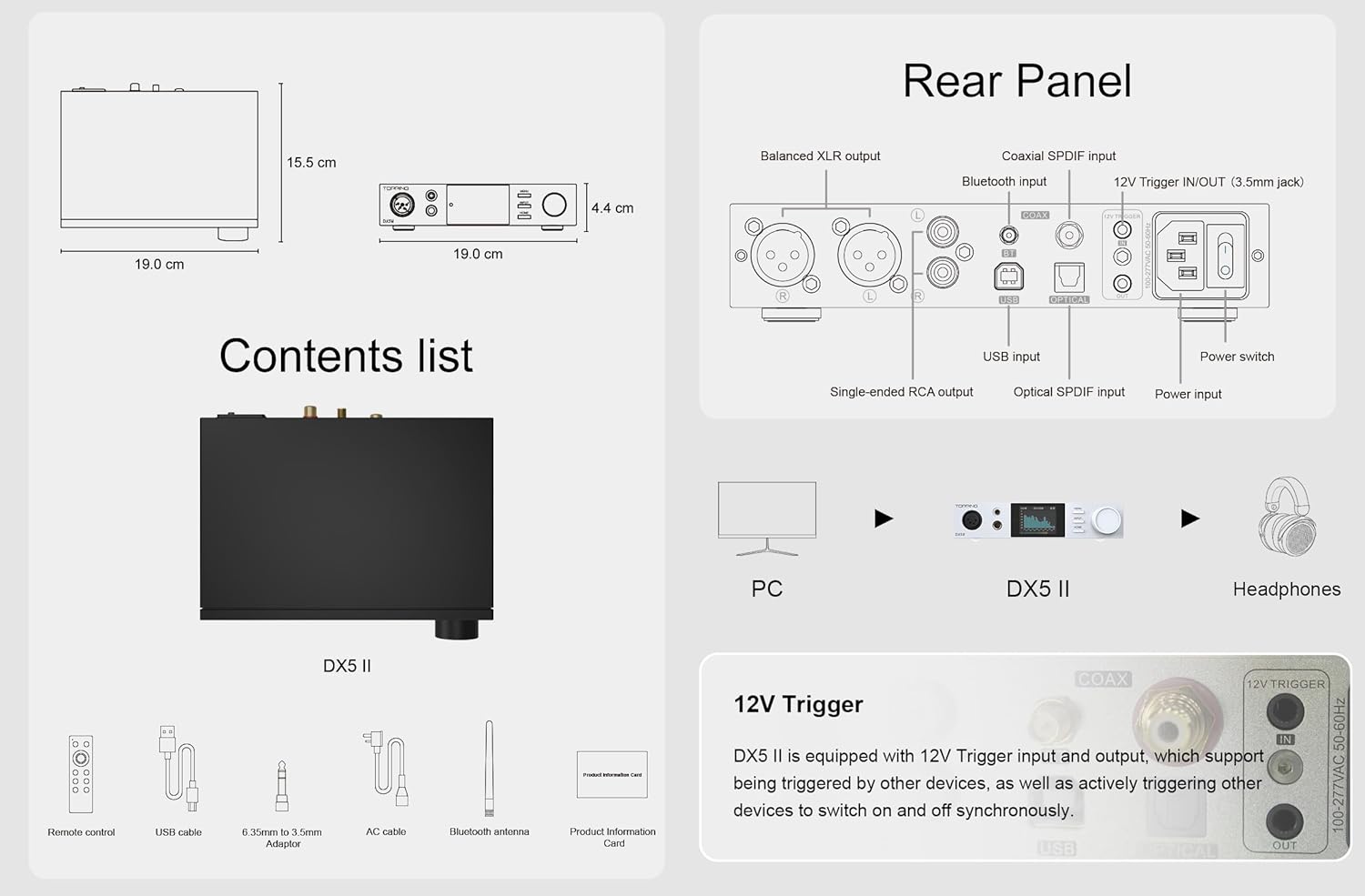

| BuiltIn Media | 6.35mm to 3.5mm Adaptor, Bluetooth antenna, Product Information Card, Remote controll, TOPPING DX5 II, USB cable, AC cable |
| Connector Type | USB |
| Output Wattage | 15.2 Watts |
| Controller Type | / |
| Audio Output Mode | Stereo |
| Audio Output Type | Bluetooth, Headphones |
| Compatible Devices | Amplifier |
| Number of Channels | 2 |
| Wireless Technology | Bluetooth |
| Warranty Description | 1 year warranty |
| Connectivity Technology | Bluetooth: QCC5125, supports LDAC/aptX HD/aptX Adaptive/AAC/SBC, Headphone outputs: 6.35mm SE, 4.4mm balanced, 4-pin XLR balanced, USB: XMOS XU316, PCM768kHz/32bit, DSD512 native |
| Surround Sound Channel Configuration | 5.1 |
| Other Special Features of the Product | 10-band high-percision PEQ, Aurora UI, ES9039Q2M X2, Hi-Res certification, X-Hybrid Headphone Amplifier Circuit |
