CNLINKO M24 PBT Plastic Plug Socket 3 Pin 20A Quick Locking Led Connector, Waterproof IP65 Outdoor Electrical Wire Cable Connectors
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by photo2paint.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by photo2paint.com
Free 30-day returns Details

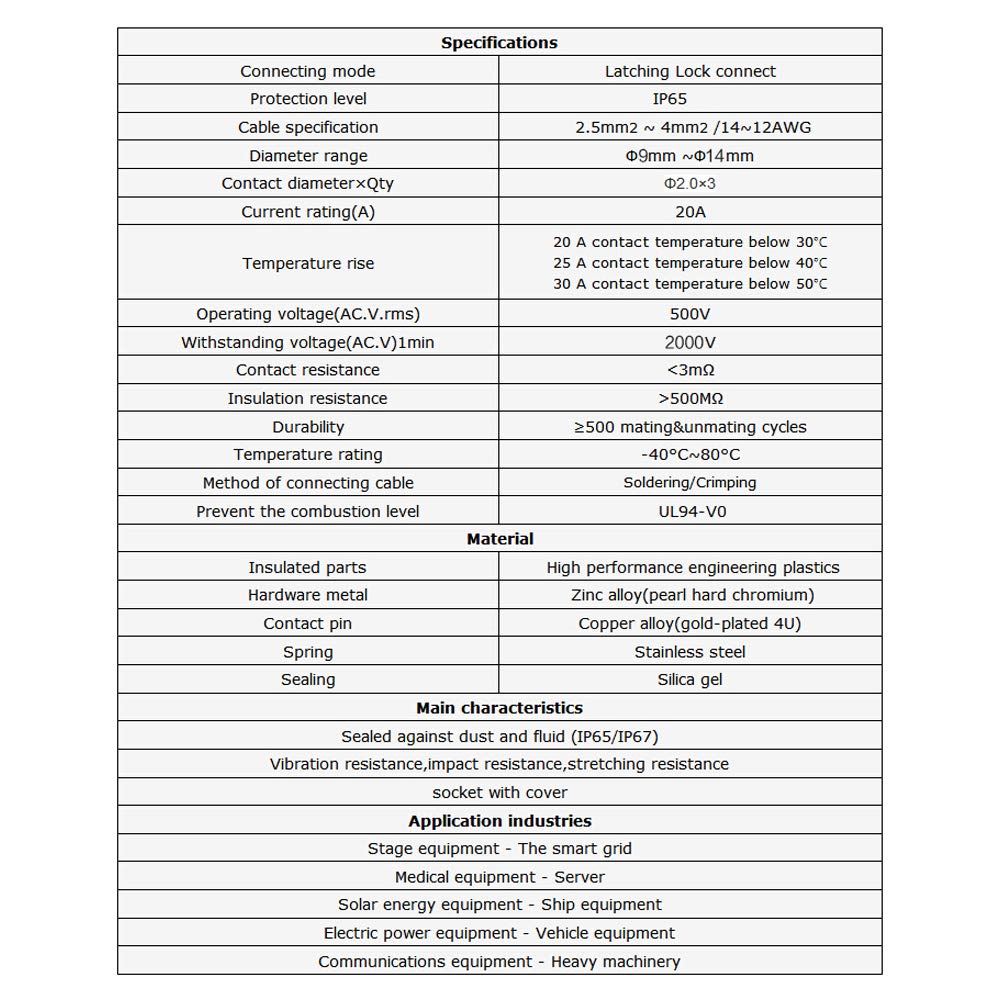

Product details
| Management number | 213581137 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213581137 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- YF-24-J03PE-02-001 + YF-24-C03SX-02-001 ; Male Plug + Female Socket ; Connecting Mode: 1/4 Mount Connector ; Protection Level: IP65(Mated) ;
- 【Standard】 Cable Specification: 2.5-4.0mm²/14-12AWG ; Cable Diameter Range: Φ9.0 - Φ14.0mm ; Contact Diameter × Number: Φ2.0x3 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style: Flat Colder And Screw ;
- 【Specifications】 Rated Current: 20A ; Operating Voltage (AC.V.rms): 500V ; Withstanding Voltage (AC.V),1 Minute: 2500V ; Contact Resistance: <2.5mΩ ; Insulation Resistance: ＞500MΩ ; Prohibited To Charged Inserted ;
- 【Material】 Shell & Insulated Parts: High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Nickel Plated + Silver Plated) ; Shrapnel: Copper plated(Copper-Plated + Nickel Plated + Silver Plated) ;
- 【Application】 Stage Equipment-The Smart Grid ; Medical Equipment-Server ; Solar Energy Equipment-Ship Equipment ; Electric Power Equipment-Vehicle Equipment ; Communications Equipment-Heavy Machiner ;
| Color | gray |
|---|---|
| Voltage | 500 Volts |
| Amperage | 20 Amps |
| Plug Type | Type D |
| Brand Name | CNLINKO |
| Manufacturer | Shenzhen Linko Electric Co.,Ltd |
| Material Type | Plastic |
| Product Grade | new |
| Connector Type | Quick Connect |
| Number Of Wires | 3 |
| Number of Poles | 3 |
| Specification Met | UL |
