CHANCS Mini Electric Low Noise Motor CH-3420 12V DC 3500RPM Hollow Shaft with 20A PWM DC Motor Speed Controller with Bracket

*This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection. The motor shaft is made with 3 mm diameter hole and 13mm threaded connecting tip. It can be widely usded in cotton candy machine, mini cutting bench, grinder, medical equipment and other mechanical equipment. *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM； Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Hollow Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 20mm, Rotation:CW/CCW. The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors! *The specification of the speed controller: Input Voltage: DC 10V-DC 60V (Ultra wide working voltage), Output voltage: linear under load, Control Power: 0.01-1200W, Rated Current: 10A, Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.), PWM Duty Cycle: 0%-100%, PWM Frequency: 25Khz, Product Size(L x W x H): 77*45*28mm, *Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc. *Package include: 1 x DC Motor, 1 x Speed Controllers,1 xBracket

• *This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection.

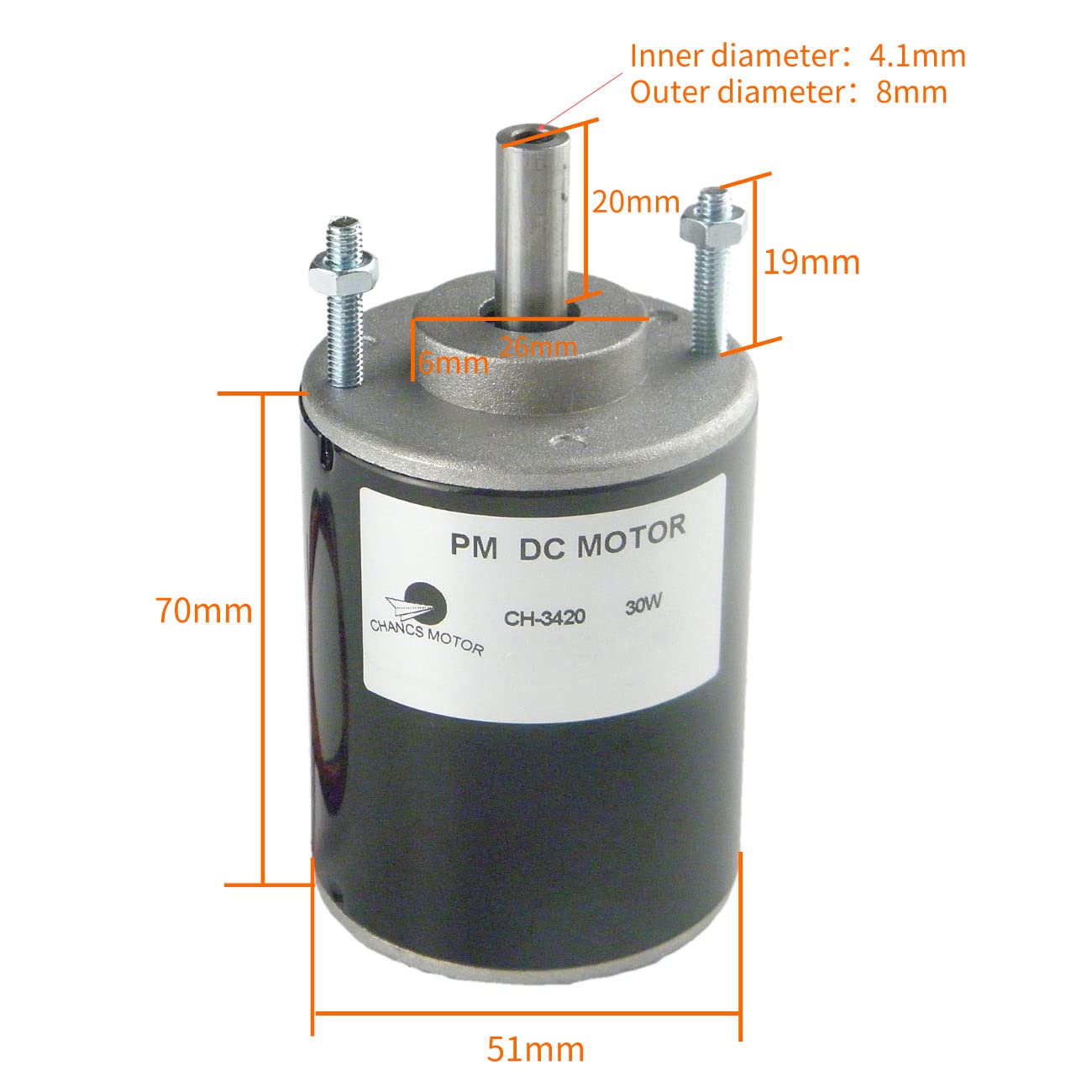

• *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM； Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Hollow Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 20mm, Rotation:CW/CCW.
• *The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors.
• *The specification of the speed controller: Input Voltage: DC 10V-DC 60V (Ultra wide working voltage),Output voltage: linear under load, Control Power: 0.01-1200W,Rated Current: 10A, Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.),PWM Duty Cycle: 0%-100%, PWM Frequency: 25Khz,Product Size(L x W x H): 77*45*28mm
• *Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.
• *Package : 1 x DC Motor, 1 x Speed Controllers,1 xBracket
