#805TB - Douglas Swivel & Tilt Mechanism, for Caster Chairs - 5 1/4" × 5 1/4" - Heavy Duty - 400 lbs Weight Limit - 3 Different Size Inserts - Made in the USA - Rated No. 1

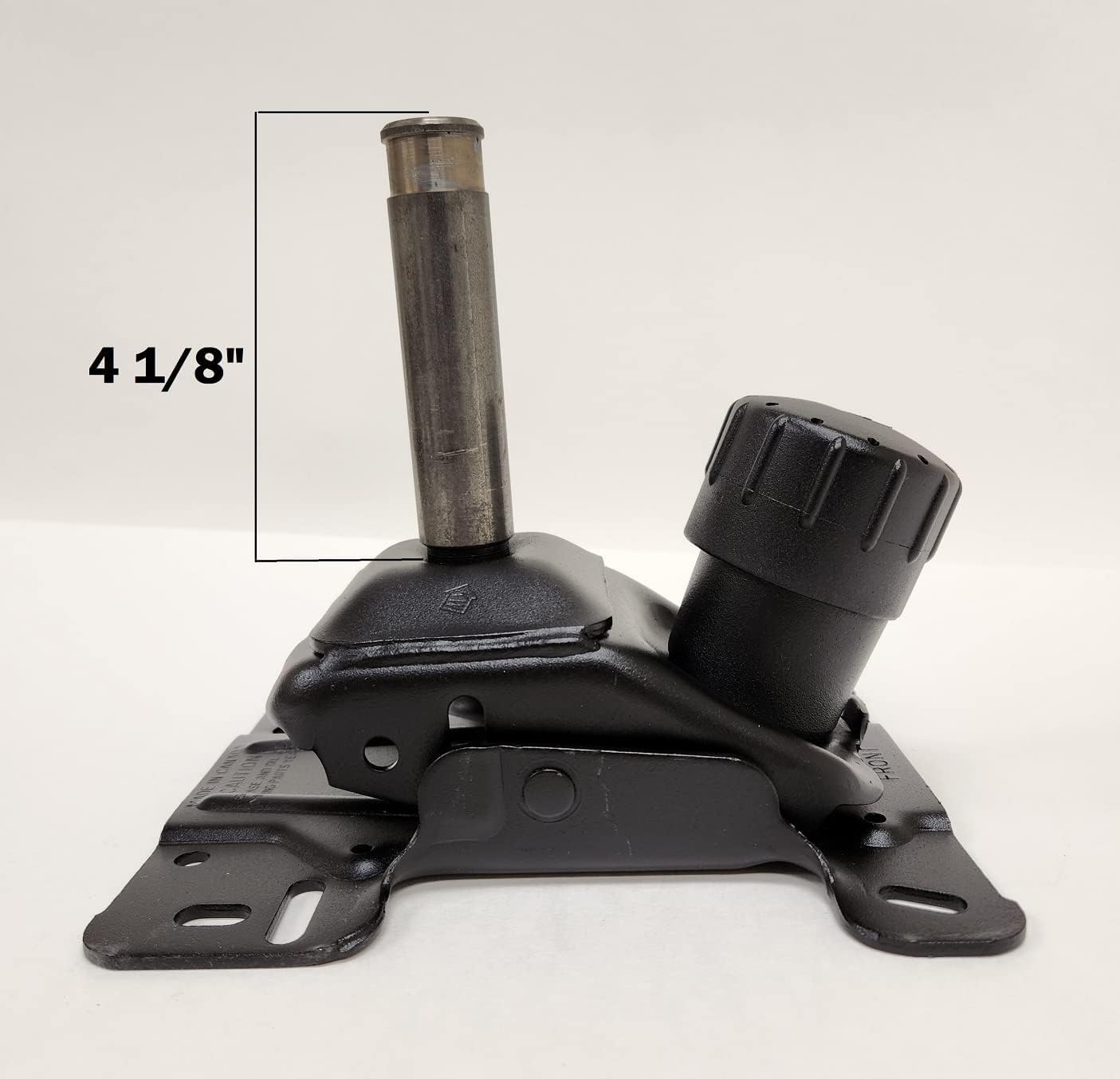

IF YOU ARE LOOKING FOR A SWIVEL THATS STRONG & WILL LAST WAY LONGER THAN THE STANDARD SWIVEL..THIS IS THE ONE TO GET. THIS SWIVEL IS FORMED, NOT WELDED - NO WELDS TO BREAK, HEAVY DUTY SWIVEL TILTER. This replacement swivel & tilt will raise your chair 1/2" taller than the original swivel tilter that has been discontinued by the manufacture. *The original manufacture has discontinued making all swivel & tilt mechanisms. *This replacement swivel and tilt for kitchen dining dinette barstool caster chairs. *This Swivel Tilter is guarantee to mount/fit to the original mountings under your seat. *What make this Swivel Tilter Heavy Duty?: *1/8" thickness steel plate. *1" diameter solid steel shaft; exposed 4 1/8". *Accepts all standard seat post plastic insert bushings. *Stronger/thicker pivot pin. *By far this is a stronger and Heavier Duty mechanism than the original manufactured. *Plate size 6 3/4" wide x 7 7/8" front to back. *Mounting holes 5 1/4" x 5 1/4" on center (most common) *Other mounting holes 5 1/4" wide x 6 1/8" front to back on center *All 6 mounting holes are slotted. *Includes 3 Free different size of Plastic Insert Seat Post Bushings. (outside diameter) 1 3/4 inches, 2 1/8 inches & 2 3/8 inches outside diameter. No matter what chair brand you have, one of these inserts will fit. Don't worry about the wax on the seat post bushings; it's from the molding and it also lubricates while installing and swiveling. Insert the Plastic Seat Post Bushing first into the upright steel pipe located at the center of the 4-leg chair base before installing the swivel tilter. If you install the Plastic Bushing onto the swivel tilter first and it's the wrong size for the upright steel pipe; It will be almost impossible to remove.

• IF YOU ARE LOOKING FOR A SWIVEL THATS STRONG & WILL LAST WAY LONGER THAN THE STANDARD SWIVEL..THIS IS THE ONE TO GET. THIS SWIVEL IS FORMED, NOT WELDED - NO WELDS TO BREAK, HEAVY DUTY SWIVEL TILTER, THIS REPLACEMENT SWIVEL & TILT WILL RAISE YOUR CHAIR HALF INCH TALLER THAN THE ORIGINAL SWIVEL TILTER THAT HAS BEEN DISCONTINUED BY THE MANUFACTURER. (THIS NEW HEAVY DUTY MECHANISM IS THE NEW REPLACEMENT FOR THE OLD DISCONTINUED OEM SWIVEL TILTER).
• Includes 3 different sizes of Plastic Insert Seat Post Bushings. (outside diameter) 1 3/4 inches, 2 1/8 inches & 2 3/8 inches. No matter what size or brand chair you have, one of these inserts will fit.
• 360 degree swivel with adjustable tilt mechanism. Plate size 6 3/4" wide x 7 7/8" front to back. Mounting holes 5 1/4" x 5 1/4".
• Heavy Duty Replacement swivel tilt for Ambassador, Art Van, Blacksmith, Callee, Canadel, Caster Chair Company, (newer) Chromcraft, Cochrane, Cramco, Daystrom, Douglas, Hippopotamus, Keller, Ladd, Lisa Furnture, Minson Corp, Precision Furniture, Stoneville, Tempo, Tobias and many others.
• If Needed Insert the Plastic Seat Post Bushing first into the upright steel pipe located at the center of the 4-leg chair base before installing the swivel tilter. If you install the Plastic Bushing onto the swivel tilter first and its the wrong size for the upright steel pipe; It will be almost impossible to remove.
